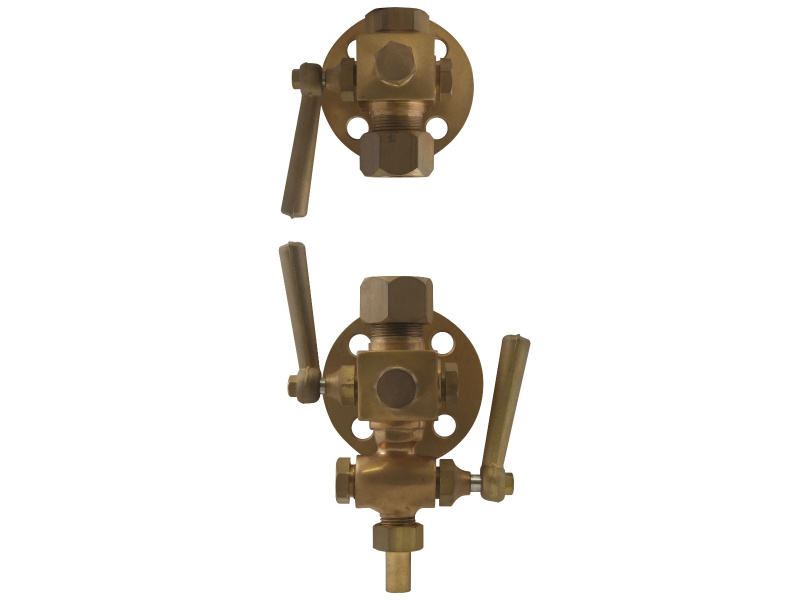

FIG 52 ¾"OD Glass Gauge Cock Set Drilled ¾" Table F
Left Hand

A Gunmetal (Material · BS 1400-LG2C) water level gauge cock made for steam working pressures up to 250 \bs/in 2 (17.2 bar) and temperatures up to S00°F (260°C) These gauges are fitted with sleeves that can be adjusted by means of packing nuts as wear necessitates and provide easy and efficient maintenance.

An automatic safety ball check is fitted as standard in the water arm. This device prevents the sudden escape of water in the event of gauge glass breakage.
