Irrigation Water Meters

For Farming & Agriculture

Provide a controlled method of maintaining crops and land
SAVING MONEY!

The WI irrigation meter is a specialised water meter for wastewater – it has been designed to accurately monitor and control the amount passing through the meter, even when the liquid is not 100% clear or even when it contains particles. It is the superior choice for applications that include water supplies drawn from a river, stream, or lake as well as purified outlets of sewage treatment installations.

Why is irrigation important for farming?

Using an irrigation meter for farming Improves crop growth and quality. It allows farmers to grow their crops on a sustained basis and provides a continuous food supply

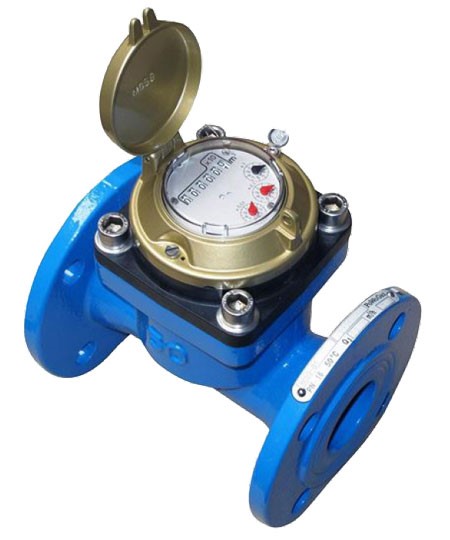

The WI Irrigation Water Meters from Apator PoWogaz are designed for installations where the water passing through is not 100% clean. With a stronger internal mechanism to resist the effects of sediment and particles, the WI Meter will record the volume that has passed. The WI range is available in sizes 50-200mm with PN16 Flanged connection.

The Meters themselves are rated for operating temperatures up to 50°C and working pressures up to 16 Bar. Common uses for this range include water supplies drawn from a river, stream or lake as well as purified outlets of sewage treatment installations. The WI is the superior choice over the MWN series of Meters as it's designed to handle dirty fluids that would otherwise compromise the turbine impeller of a standard Meter.

A Volt Free Pulsed Output is available for all models within the range with a minimum output ratio of K=100L. A 1.5 metre flylead is supplied with all pulsed models for connecting this output to a BMS System or local data logging facility.

IRRIGATION WATER METERS
- WI, WI-NK -01, -02. -03, -04

Characteristic Features:

Possibility of mounting on horizontal, vertical and inclined pipelines
WI - version without transmitter
WI-NK - Version with Reed relay impulse transmitter
Counter of roller-pointer type housed in airtight casing
Drive transfer on to the counter through a magnetic clutch
Measuring inserts identical for all sizes, which facilitates repairs and storage of parts
Inserts are removable without dismantling water meters bodies from pipelines
Counter protected by a padlocked cover
Version equipped with a Reed contact available
