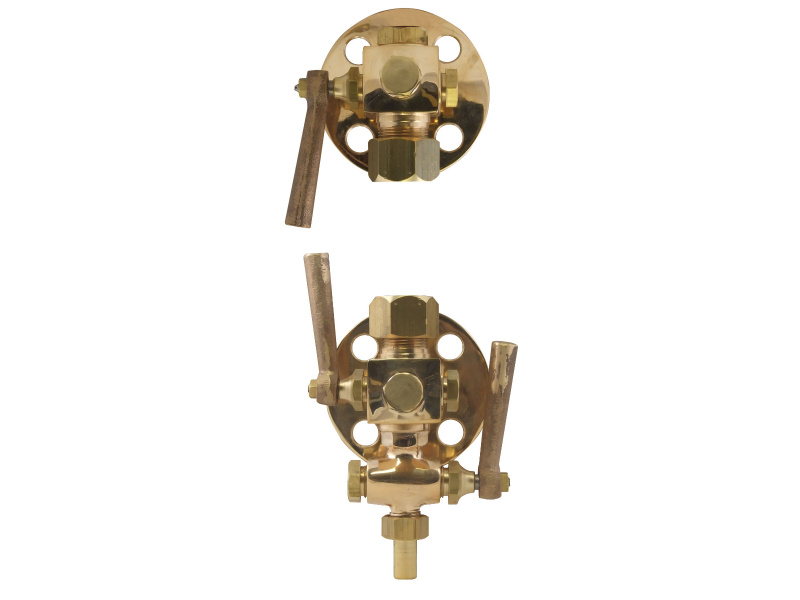

FIG 44 ¾" Gauge Cock Set Drilled 20mm PN16
Left Hand

A Gunmetal (Material BS 1400-LG2C ) water level gauge cock made for steam working pressures up to 250 lbs/in 2 (17.2 bar) and temp eratures up to 500°F (260°C). These gauges are fitted with sleeves that can be adjusted by means of packing nuts as wea r necessitates and provide easy and efficient maintenance.

An automatic safety ball check is fitted as standard in the water arm. This device prevents the sudden escape of water in the event of gauge glass breakage.
