DN80 PN16 Water Conditioner Max Flow Rate 130m3/hr

Excl. VAT: £12,758.20
Incl. VAT: £15,309.84
Brand: Kamco
Product Code: KAM-MISB80-EF-16
Quantity:

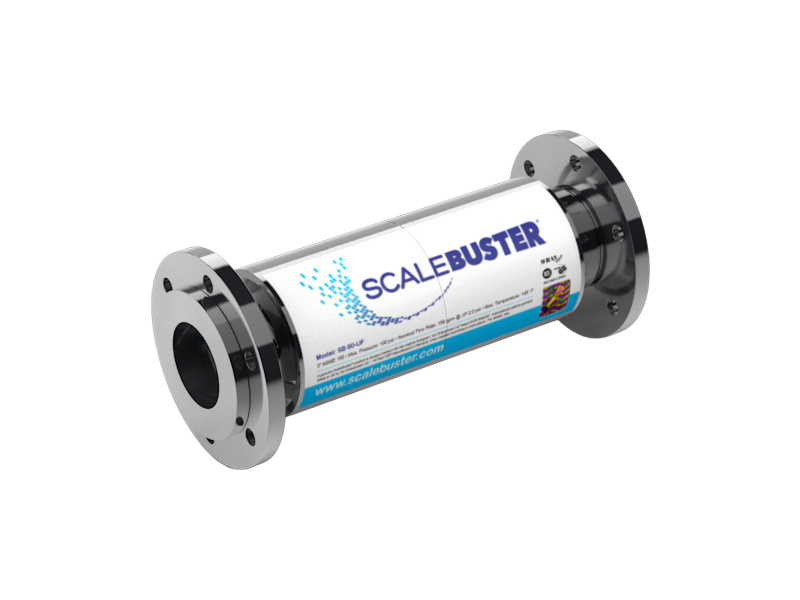

Kamco ScaleBuster MISB80-EF-16 Water Conditioner — DN80 PN16

The Kamco ScaleBuster MISB80-EF-16 is a patented, maintenance-free physical water conditioner designed to prevent and reduce scale build-up and corrosion in water systems without the use of chemicals, salt, or electricity. Rather than removing minerals from the water as a softener would, the ScaleBuster uses a catalytic process to alter the molecular structure of hardness minerals such as calcium and magnesium as water flows through the unit. This reduces their ability to form hard scale deposits on pipework, boilers, heat exchangers and other water-bearing surfaces.

Fitted with a dry contact zinc anode, the MISB80-EF-16 also provides corrosion protection without requiring any external power supply. With no moving parts, no consumables and a design lifespan of over 20 years, it represents a cost-effective and environmentally responsible long-term solution for scale prevention at high flow rates. Connecting via 3" DN80 PN16 flanges and capable of handling maximum flow rates of 130m³/hour, this unit is suited to large commercial and industrial installations. WRAS, NSF and TÜV approved.

CONNECTION 3" DN80
TOTAL LENGTH 445mm
MAXIMUM FLOW RATE 130m³/hour
WEIGHT 31kg

Key Features

  • Patented catalytic technology — prevents and reduces scale without chemicals
  • Chemical-free, salt-free and electricity-free operation
  • Dry contact zinc anode provides corrosion protection
  • No moving parts, no consumables — completely maintenance-free
  • Design lifespan of over 20 years
  • WRAS, NSF and TÜV approved
  • 10-year warranty
  • 3" DN80 PN16 flanged connection
  • Maximum flow rate of 130m³/hour — suited to large commercial and industrial installations

Product Specifications

Specification Detail
Connection 3" DN80 PN16 Flanges
Total Length 445mm
Outer Diameter 138mm
Weight 31kg
Nominal Pressure 16 bar
Nominal Flow Rate 36.0m³/h
Design Flow Rate 81.0m³/h (22.5 l/s)
Maximum Flow Rate 130.0m³/h (36.1 l/s)
Maximum Operating Temperature 60°C
Warranty 10 years
EAN 5060134596249
Product Number MISB80-EF-16

Materials

Component Material
Body Lead-free brass (DIN EN 12164, CW724R, CW510L) or bronze (BS EN 1982:2008 CC481K / BS1400 PB1)
Anode Zinc Z2 (BS EN 1179:2003 / ASTM B418 Type 1 or Type 2 / MIL-A-18001K)
Turbulence Body PTFE (BS EN ISO 13000-1:2005)
Retaining Clip Stainless Steel 316L
