Guardair / Nortech 55 Gall Dual Pneumatic ATEX Certified Vac Kit 1 1/2" Hose

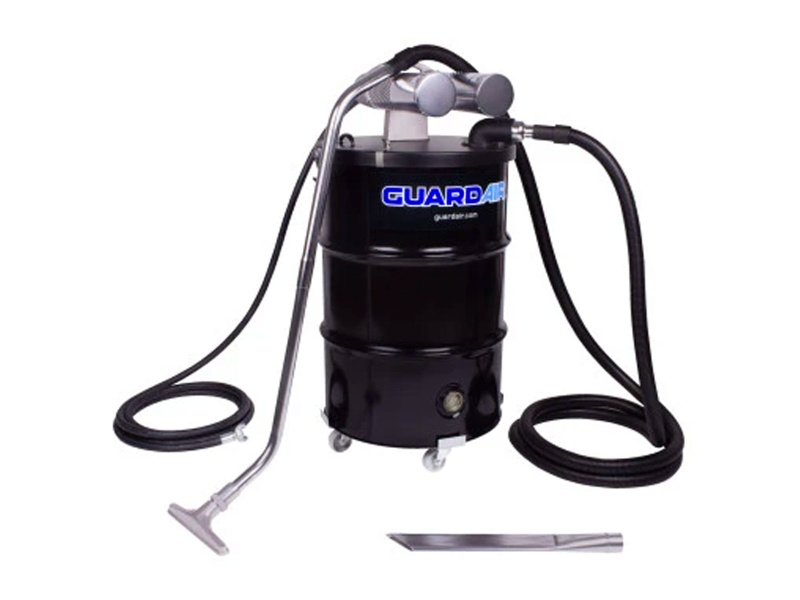

Guardair / Nortech 55 (US) Gallon Dual Pneumatic ATEX Certified Vac Kit 1 1/2" Hose
Generating 63% more vacuum flow than single venturi units, Guardiar 55 (US) Gallon Hazardous Location Dual Venturi Drum Vacuums are designed to operate safely in many hazardous locations. ATEX certified safe. Electrically bonded components, static conductive attachments, and multiple grounding options eliminate static electricity at the source. Powered by compressed air, with no motors to spark or burnout, and no electric cords, Guardair Hazardous Location Vacuums generate exceptional vacuum lift and vacuum flow, and offer safe, effective, efficient performance.
- Features
- Dual venturi vacuum generating head with exhaust silencer
- Standard cartridge filter with electrically conductive cage
- Heavy-duty, static conductive powder coated, 55 (US) gallon steel drum
- Detachable drum dolly with four, 3" steel swivel casters
- Air shutoff valve with 3/4" FNPT inlet; equipped with 3/4" NPT connector.
- 3/4" x 20' static conductive air supply hose with Universal Couplings
- 1 1/2" x 20' static conductive vinyl vacuum hose
- Detachable, 12" wide metal wet/dry floor tool with 4' steel wand
- 24" metal crevice tool
- Includes
- (1) 55 Gallon B Series Dual Vacuum Generating Head ATEX Certified
- (1) 4' Aluminum Wand With 12" Wide Floor Tool
- (1) 1.5" x 20' Static Conductive Vacuum Hose
- (1) 24" Metal Crevice Tool
- (1) ATEX Bonded Filter For 55 Gallon Vacuums
- (1) Retaining Springs (Set Of 3)
- (1) Static Conductive Air Hose 3/4" x 20'
- (1) 55 Gallon 18 Gauge ATEX Certified Steel Drum
- (1) 55 Gallon Drum Dolly
- (1) SIRA Certificate For ATEX Vaccum
Specifications
| Air Inlet FNPT (in) |
Min. Compressor Required (hp) |
Noise Level (dB) |
Flow (cfm) | Vacuum Flow (cfm) |
Vacuum Lift (in H20) |
Steel Drum Gauge | Dimensions (L" x W" x H") |
Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| 3/4 | 24 | 102 | 110 | 163 | 163 | 19 | 48 x 27.7 x 24.5 | 103.7 |
What is ATEX Certification?
ATEX is the name commonly given to the two European Directives for controlling explosive atmospheres:
1) Directive 99/92/EC (also known as 'ATEX 137' or the 'ATEX Workplace Directive') on minimum requirements for improving the health and safety protection of workers potentially at risk from explosive atmospheres. The text of the Directive and the supporting EU produced guidelines are available on the EU-website. For more information on how the requirements of the Directive have been put into effect in Great Britain see the information in the section Explosive atmospheres in the workplace below.
2) Directive 94/9/EC (also known as 'ATEX 95' or 'the ATEX Equipment Directive') on the approximation of the laws of Members States concerning equipment and protective systems intended for use in potentially explosive atmospheres. The text of the Directive and EU produced supporting guidelines are available on the EU website. For more information on how the requirements of the Directive have been put into effect in Great Britain see the section on Equipment and protective systems intended for use in explosive atmospheres.
