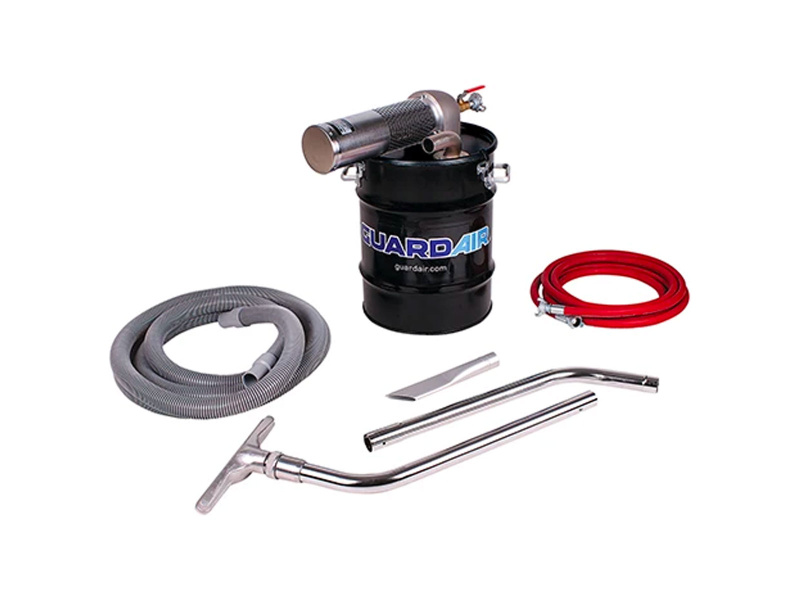

Nortech / Guardair 10 Gallon (S Venturi) Vac Kit C/W 1-1/2" Hose & Tools
Nortech / Guardair 10 Gallon (S Venturi) Vac Kit C/W 1-1/2" Hose & Tools
Guardair 10 Gallon Drum Vacuum Kits offers the same high level of performance as larger units but in a more compact package. Lightweight, portable and Perfect for applications where a low drum capacity is sufficient. Ideal for vacuuming up chips, dust, debris, liquids or sludge. Powered by compressed air, always dependable and trouble free with no motors or moving parts to wear out. Generate exceptional vacuum lift and vacuum flow while operating quietly and efficiently.
- Features
- Single venturi vacuum generating head with exhaust silencer
- Standard cartridge filter
- Canister style steel drum with carry handles
- Air shutoff valve with 1/2" FNPT inlet; equipped with 1/2" NPT connector.
- 1/2" x 20' air supply hose with Quick-Disconnect fittings
- 1 1/2" x 20' standard-duty vinyl vacuum hose
- Detachable, 12" wide metal wet/dry floor tool with 4' steel wand
- 24" metal crevice tool
- Includes
- (1) 10 Gallon S Series Vacuum Generating Head
- (1) 10 Gallon Drum
- (1) Standard Catridge Filter
- (1) Air Hose 1/2" x 20'
- (1) 1.5" x 20' Standard Duty Vacuum Hose
- (1) 11" Metal Crevice Tool
- (1) 4' Aluminum Wand With 12" Wide Floor Tool
Specifications
| Part Number | Venturi (type) | Air Usage (cfm) | Inlet Connector | Inlet Air Line (in) | Minimum Compressor Required (hp) | Vac Lift (in H2O) | Vac Flow (cfm) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| N101SC | S | 20 | Industrial Interchange |
½ | 5 | 105 | 61 | 32 |
Requirements
| Model | Compressor | Compressed Air Line | |||
|---|---|---|---|---|---|
| Part Number | Venturi (type) | Required Air Supply (cfm) | Suggested Power (hp) | Hose ID (in)* | Connection Method* |
| N101SC | S | 20 | 5 | ½ | Industrial Interchange |
*Air hose and connectors supplied with Vacuum
Specifications
| Air Inlet FNPT (in) |
Min. Compressor Required (hp) | Noise Level (dB) | Flow (cfm) | Vacuum Flow (cfm) | Vacuum Lift (in H20) | Steel Drum Gauge | Dimensions (L" x W" x H") |
Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| 1/2 | 4.4 | 95 | 21 | 61 | 105 | 20 | 23.5 x 23 x 17.5 | 39.5 |
