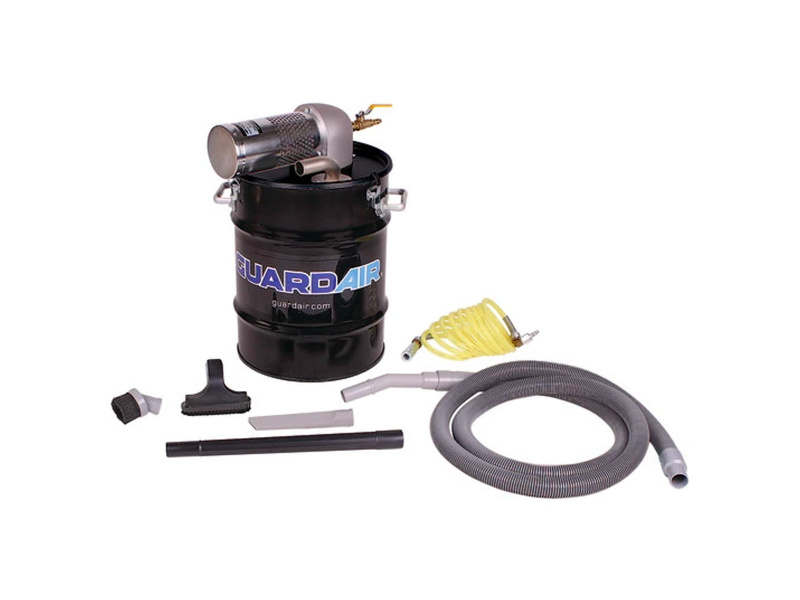

Guardair / Nortech 10 Gallon (M Venturi) Vac Kit C/W 1-1/4" Hose & Tools
Guardair / Nortech 10 Gallon (M Venturi) Vac Kit C/W 1-1/4" Hose & Tools
Guardair 10 Gallon Drum Vacuum Kits offers the same high level of performance as larger units but in a more compact package. Lightweight, portable and Perfect for applications where a low drum capacity is sufficient. Ideal for vacuuming up chips, dust, debris, liquids or sludge. Powered by compressed air, always dependable and trouble free with no motors or moving parts to wear out. Generate exceptional vacuum lift and vacuum flow while operating quietly and efficiently.
- Features
- Single venturi vacuum generating head with exhaust silencer
- Standard cartridge filter
- Canister style steel drum with carry handles
- Air shutoff valve with 3/8" FNPT inlet; equipped with 3/8" NPT connector.
- 3/8" x 12' air supply hose with Quick-Disconnect fittings
- 1 1/4" x 10' standard-duty vinyl vacuum hose
- 1 1/4" x 9.5" plastic curved tool coupler
- 1 1/4" x 20" plastic extension wand
- 1 1/4 x 3" plastic round brush tool
- 1 1/4 x 5" plastic utility tool with brush
- Includes
- (1) 10 Gallon M Series Vacuum Generating Head
- (1) 10 Gallon Drum
- (1) Standard Catridge Filter
- (1) Coiled Air Hose 3/8" x 12'
- (1) 1.25" x 10' Standard Duty Vacuum Hose
- (1) 9" Plastic Crevice Tool
- (1) 19" Plastic Wand
- (1) 3" Round Brush Tool
- (1) 5" Wide Plastic Utility Tool
Specifications
Part Number | Venturi (type) | Air Usage (cfm) | Inlet Connector | Inlet Air Line (in) | Minimum Compressor Required (hp) | Vac Lift (in H2O) | Vac Flow (cfm) | Weight (lbs) |
---|---|---|---|---|---|---|---|---|
N101MC | M | 20 | Industrial Interchange |
⅜ | 5 | 105 | 61 | 32 |
Requirements
Model | Compressor | Compressed Air Line | |||
---|---|---|---|---|---|
Part Number | Venturi (type) | Required Air Supply (cfm) | Suggested Power (hp) | Hose ID (in)* | Connection Method* |
N101MC | M | 20 | 5 | ⅜ | Industrial Interchange |
*Air hose and connectors supplied with Vacuum
Specifications
Air Inlet FNPT (in) |
Min. Compressor Required (hp) | Noise Level (dB) | Flow (cfm) | Vacuum Flow (cfm) | Vacuum Lift (in H20) | Steel Drum Gauge | Dimensions (L" x W" x H") |
Weight (lbs) |
---|---|---|---|---|---|---|---|---|
3/8 | 4.4 | 93 | 20 | 61 | 105 | 20 | 23.5 x 17.5 x 17.5 | Weight (lbs) 38.4 |
