Fluke T150 Voltage/Continuity Tester

Excl. VAT: £122.89
Incl. VAT: £147.47
Product Code: FLUKE-T150
Quantity:

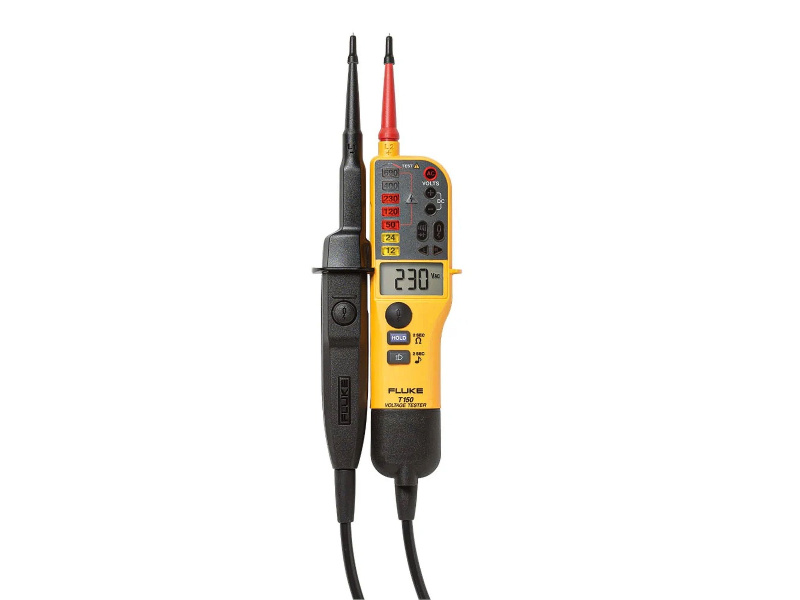

Fluke T150 Voltage/Continuity Tester with LCD readout and additional resistance measurement
Fluke’s two-pole voltage and continuity testers are built to work the way you work. They give you the best combination of safety, ease-of-use and fast answers available anywhere.

  • Designed according to IEC EN 61243-3:2014 to verify the absence of voltage – even with discharged batteries.
  • CAT IV 600 V, CAT III 690 V safety rating

Fluke Two-pole Voltage and Continuity Testers give you fast test results the way you need them, with large, easy-to-use buttons, bright backlights, and clear audible and physical indicators designed for any work situation. Resistance measurements up to 1999 Ω. Display hold. Enhanced ergonomic design is easy to use (even with gloves on) and offers quick, secure probe docking.

Two-pole voltage and continuity testers measure voltage, but just as important is when a two-pole tester tells you that there is NOT voltage present before working on any circuit. For you to rely on your two-pole tester, it has to be the most rugged and reliable tester you can find. That’s what Fluke’s redesigned two-pole testers give you.

  • Features
  • Dual insulated cable tested to 3x the required bend angle provides increased reliability and durability.
  • Switchable load: avoid display of ghost voltages allowing you to draw more current from the circuit under test and avoid trip residual-current devices (RCDs)
  • Backlit graduated scale and backlit indicators
  • Built in electric torch for use in dark areas.
  • Resistance testing to 1999 ohms.
  • Audio on/off for testing in quiet areas.
  • Improved probe docking for secure storage.
  • Phase rotation indicator for 3-phase systems.
  • Display hold freezes reading on display until your can view it comfortably.
  • Single-pole phase test offers fast identification of live conductors.
  • Push-on probe tips, probe tip protector and storage accessory.
  • Tip protector serves as an extra hand when opening UK electrical safety outlets.
  • Low battery indicator.

Specifications

Features T150
Backlit LED indicator
Backlit LCD digital display LCD
Continuity test—visual results
Continuity test—audible results
with on/off
Vibratory indicator under load
Display hold
Voltage test
Indication of polarity
Resistance measurement
Switchable load
Single pole test for phase detection
Rotary field indicator
Probe tip protection
Voltage detection with discharged batteries
Electrical torch function
Wear indicator test lead wire

Specifications T150
Voltage AC/DC 6V - 690V
Continuity 0 - 400 kΩ
Frequency 0 / 40 - 400 Hz
Phase rotation 100 V - 690 V
Resistance measurement Up to 1999 Ω
Response Time (LED indicator) < 0.5 s
200 kΩ input impedance Current draw 3,5 mA @ 690 V
Current draw 1,15 mA @ 230 V
7k Ω input impedance (with load buttons pressed) Current draw 30 mA @ 230 V
Safety rating CAT III 690V
CAT IV 600V
IP rating IP64
Power requirement 2-AAA batteries
Net weight 180 g (6.4 oz)
Size (LxWxH) 23 cm x 6.5 cm x 3.8 cm
Warranty 2 years
Country of origin Great Britain
