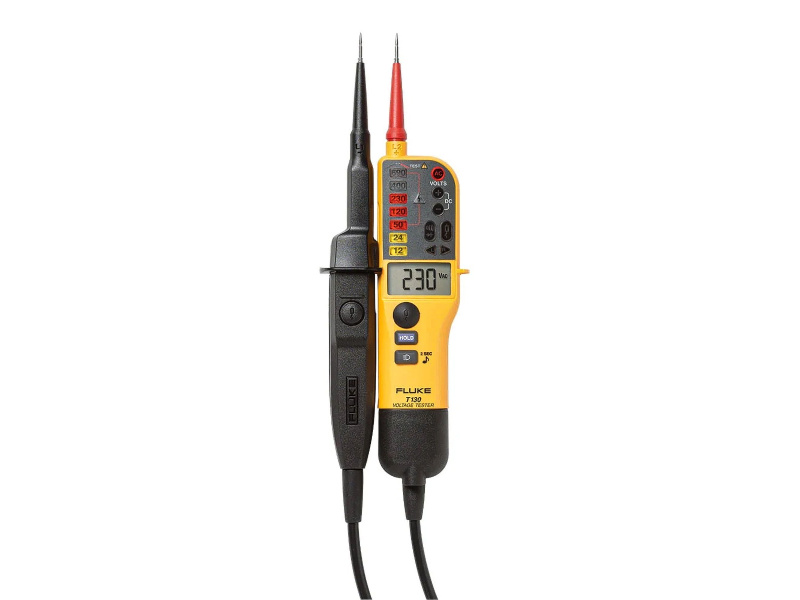

Fluke T130 Voltage/Continuity Tester
Fluke T130 Voltage/Continuity Tester with Backlit LCD Readout
Fluke’s two-pole voltage and continuity testers are built to work the way you work. They give you the best combination of safety, ease-of-use and fast answers available anywhere.
- Designed according to IEC EN 61243-3:2014 to verify the absence of voltage – even with discharged batteries.
- CAT IV 600 V, CAT III 690 V safety rating
The Fluke T130 Voltage and Continuity Tester with large, easy-to-use buttons, a bright backlit LED indicator and LCD display, display hold, and clear audible and vibrating voltage indicators designed for any work situation.
Two-pole voltage and continuity testers measure voltage, but just as important is when a two-pole tester tells you that there is NOT voltage present before working on any circuit. For you to rely on your two-pole tester, it has to be the most rugged and reliable tester you can find. That’s what Fluke’s redesigned two-pole testers give you.
- Features
- Dual insulated cable tested to 3x the required bend angle provides increased reliability and durability.
- Switchable load: avoid display of ghost voltages allowing you to draw more current from the circuit under test and avoid trip residual-current devices (RCDs)
- Backlit graduated scale and backlit indicators
- Built in electric torch for use in dark areas.
- Audio on/off for testing in quiet areas.
- Improved probe docking for secure storage.
- Phase rotation indicator for 3-phase systems.
- Display hold freezes reading on display until your can view it comfortably.
- Single-pole phase test offers fast identification of live conductors.
- Push-on probe tips, probe tip protector and storage accessory.
- Tip protector serves as an extra hand when opening UK electrical safety outlets.
- Low battery indicator.
Specifications
Features | T130 |
---|---|
Backlit LED indicator | • |
Backlit LCD digital display | LCD |
Continuity test—visual results | • |
Continuity test—audible results | • with on/off |
Vibratory indicator under load | • |
Display hold | • |
Voltage test | • |
Indication of polarity | • |
Resistance measurement | N/A |
Switchable load | • |
Single pole test for phase detection | • |
Rotary field indicator | • |
Probe tip protection | • |
Voltage detection with discharged batteries | • |
Electrical torch function | • |
Wear indicator test lead wire | • |
Specifications | T130 |
---|---|
Voltage AC/DC | 6V - 690V |
Continuity | 0 - 400 kΩ |
Frequency | 0 / 40 - 400 Hz |
Phase rotation | 100 V - 690 V |
Resistance measurement | - |
Response Time (LED indicator) | < 0.5 s |
200 kΩ input impedance | Current draw 3,5 mA @ 690 V Current draw 1,15 mA @ 230 V |
7k Ω input impedance (with load buttons pressed) | Current draw 30 mA @ 230 V |
Safety rating | CAT III 690V CAT IV 600V |
IP rating | IP64 |
Power requirement | 2-AAA batteries |
Net weight | 280 g (9.9 oz) |
Size (LxWxH) | 26 cm x 7 cm x 3.8 cm |
Warranty | 2 years |
Country of origin | Great Britain |
