CombiMag HEAT Power Flushing Filter

Excl. VAT:	£639.60
Incl. VAT:	£767.52
Brand:	Kamco
Product Code:	KAM-HEAT
Quantity:

Description
Datasheets

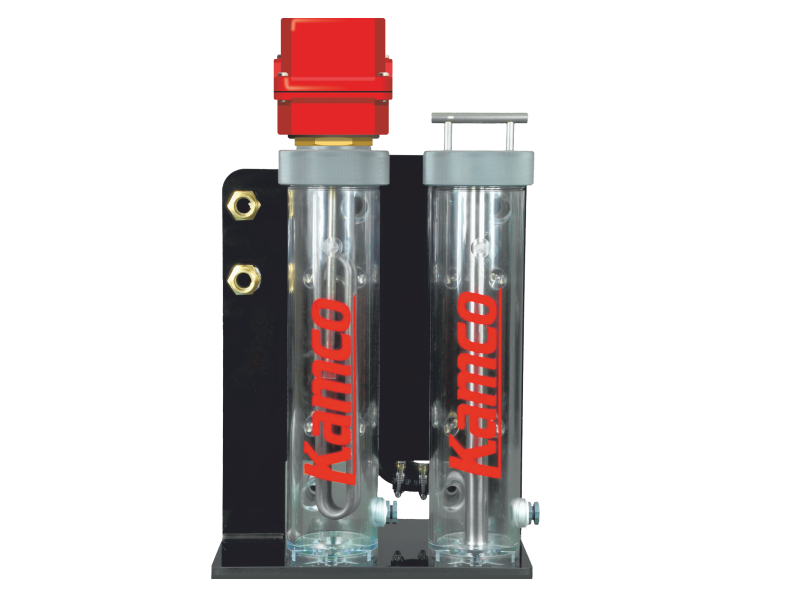

CombiMag HEAT | Magnetic power flushing filter with heater

Twin cylinder unit with magnetic and heater
11,000 gauss of magnetic power.
3kW heater with LED indicator
Increases power flushing efficiency; Reduces tiem taken to power flush a system
Prevents re-circulation of debris through the boiler
Transparent cylinder gives visible indication of system contamination and the need to clean the magnet
Built-in by-pass enables filter to be cleaned without interrupting power flush process or heating process
Supplied in protective case, with coupling hose

POWER FLUSHING

The fastest and most effective means to remove sludge and corrosion debris from central heating systems is to use a high flow of water to loosen and ultimately expel debris. Power flushing mobilises large quantities of black iron oxide within the system. Clear water is forced through the system, pushing debris ahead of it. This continues until the dump water finally runs clear, and can take a considerable length of time.

CombiMag HEAT - MAGNETIC FILTER MODULE

This filter uses two powerful 11,000 gauss rare earth magnets to quickly capture circulating black iron oxide contamination from the flushing water.

BENEFITS

The time saved on every job when using the CombiMag HEAT will rapidly cover its cost and reduce disruption for householders.
The debris retained on the magnet is an impressive visual aid to demonstrate to householders what has been removed from their heating system and emphasises the benefits of a more efficient heating system and resulting reduction in energy usage.

CombiMag HEAT - HEATING MODULE

For efficient chemical application during power flushing, it is beneficial for the water to be warm, around 50ºC. CombiMag HEAT raises and controls the water temperature, ideal when the system boiler is isolated/out of comission.

INSTALLATION

The CombiMag HEAT filter is installed in line with any power flushing pump. The cyclone construction directs contaminated water through a powerful magnetic field, such that even the smallest of particles are retained on the central magnet, from which they may be easily cleaned during and after power flushing. Captured debris is prevented from re-entering the heating system, preventing saturation of the cleaning solution with black sludge, leading to a more effective power flush.
