Oil Flow Meter Fig VZO 1/2" BSP Non-Pulsed 130°C
Oil Flow Meter Fig VZO 1/2" BSP
Non-Pulsed
130°C

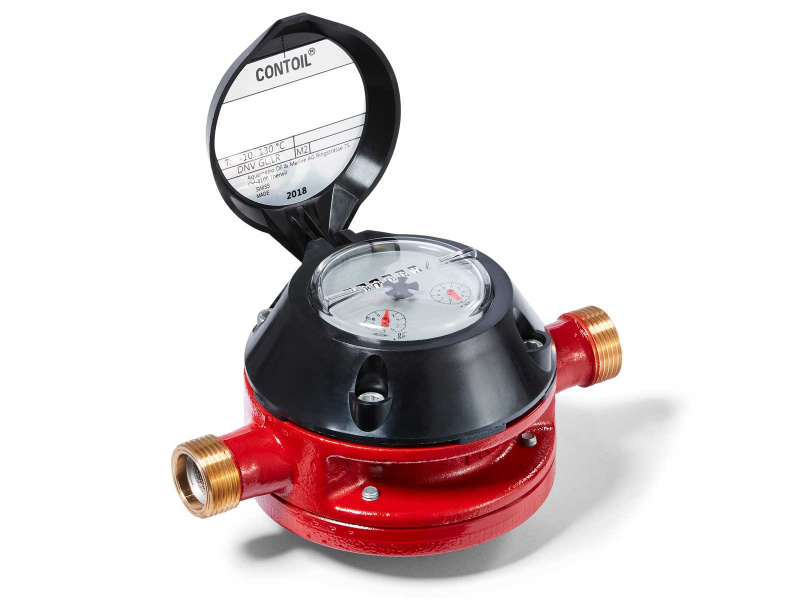

The Aquametro VZO (Male Thread Union Connections [In-Line]) screwed oil flow meters provide an accurate, reliable and economical way of obtaining all the information a user needs to control oil usage and energy costs. The oil flow meters handle a wide range of viscosity's for a variety of applications including checking and totalising fuel for burners, furnaces and diesel engines recording draw off from storage tanks and recording general usage.
- Features
- Volume display on roller counter, in litres
- Fuel oil meter with threaded or flanged ends
- For horizontal, vertical or inclined mounting
- Accuracy of ±1% of reading with a repeatability of ±2%
- Durable tamper resistant construction
- Optional pulse output facility
- All suitable for light and medium grade heating oil and diesel oil. ¾"-2" for heavy grade oil
- Maximum temperature 60°C to ¼" 130°C to 2" horizontal and vertical pipes.
Pressure & Temperature
Pressure Range:
Fig VZO up to 16 Bar
Temperature Range:
Fig VZO up to 130°C
Type | VZO 15 | ||
---|---|---|---|
Nominal Diameter | DN | mm inch |
15 1/2 |
Installation length | mm | 165 | |
Nominal Pressure with threaded ends | PN | Bar | 16 |
Maximum Temperature | Tmax | °C | 130,180 |
Maximum flow rate | Qmax3 | l/h | 600 |
Nominal flow rate | Qcont3 | l/h | 400 |
Minimal flow rate | Qmin | l/h | 10 4 |
Approx. starting flow rate | l/h | 4 | |
Max. permissible error | ±1% of actual value | ||
Repeatability | ±0.2% | ||
Safety filter mesh size | mm | 0.400 | |
Dirt filter mesh size | mm | 0.250 | |
Volume of the measuring chamber | approx. cm3 | 12 | |
Housing finish | enamelled red RAL 3013 | ||
Weight with threaded ends | approx kg | 2.2 | |
Smallest readable amount | | | 0.01 | |
Registration capacity | m3 | 1000 | |
Registration time at Qcont until overrunning to zero | h | 2500 | |
Pulse values of pulsers: | |||
IN inductive according to IEC 60947-5-6 | l/pulse | 0.01 | |
RV Reed | l/pulse | 0.1 | |
RV Reed | l/pulse | 1 | |
Pulse frequency in | at Qmax | HZ | 16.667 |
at Qmin | HZ | 0.278 |
