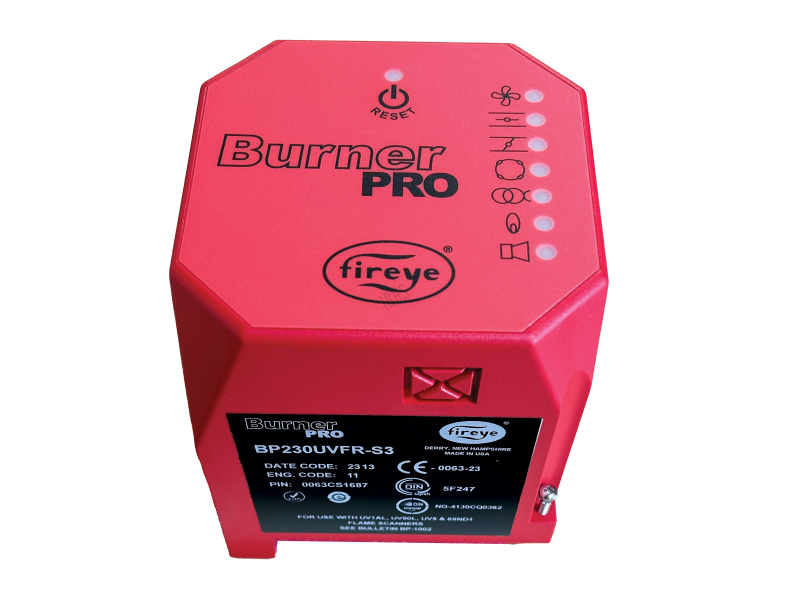

The Fireye BurnerPRO is a compact, microprocessor based, primary flame safeguard control system designed to provide the proper burner sequencing, ignition and continuous flame monitoring for on-off, multi-stage, or modulating burners used in commercial heating and process equipment firing oil and gas fuels. The system is designed for use in non-permanent operations that requires burner recycle at least once every 24 hours.

Flame monitoring for the UV version is accomplished by the built in amplifier and compatible UV scanner. Control functions and timings are factory set via unique micro controller firmware. Through seven SMART LEDs, the control provides current operating status and lockout information in the event of a safety shutdown.

A complete BurnerPRO system includes the BP110/230, flame scanner and wiring base. The BurnerPRO performs a safety self-test on every start. If a flame is detected prior to a start or during the purge cycle, the fuel valves are not energized and the control locks out. The LEDs and alarm terminal is used to annunciate the presence of a lockout condition.

Additional functions of the BurnerPRO include:

• Non-volatile lockout capability
• Proof of fuel valve closure
• Air-flow proving
• A run/check feature allows the operator to stop the program sequence in different positions (Purge, Ignition, PTFI and MTFI)
• Remote and local Reset
• One second flame failure response time
• Smart LEDs provide on board diagnostic lockout information
• Real-time internal diagnostics for added safety integrity
• Extended temperature operation (-40°C to 60°C) with an over-temp inhibit feature
• High capacity relay contacts
