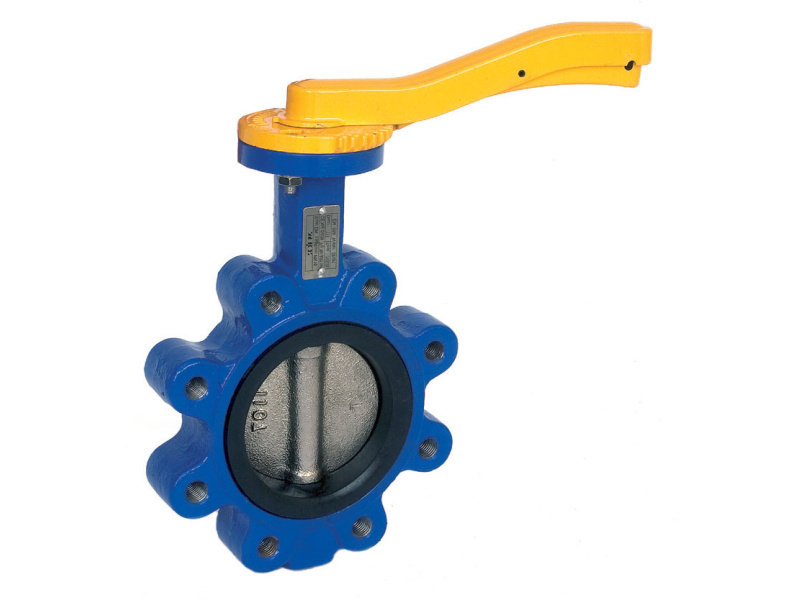

6" (150mm) Fully Lugged Ductile Iron Wafer Valve
Features
- Flange Mounting PN16 Only
- BS5155 (BS EN 593)
- ISO 5211 Direct Mount
- Lockable Handle
- Epoxy Coat Finish
Technical Data
| Max. Pressure |
16 Bar |
| Working Temperature |
0°C to +90°C |
| DN |
150 |
| A |
205 |
| B |
135 |
| C |
56 |
| D |
240 |
| E |
14 |
| F |
70 |
| G |
90 |
| H |
19 |
| H1 |
36 |
| L |
55.1 |
| L1 |
225 |
| N-Mb |
8-M20 |
| N-Ăp |
4-10 |
| Torque |
91 |
| Kv |
2170 |
| Kgs |
9.7 |
Dimensions are in MM
This information is designed as a guide and should not be regarded as wholly accurate in every detail. We reserve the right to amend the specification of any product without notice
| N. |
Part Name |
Materials |
| 1 |
Body |
Ductile Iron GGG40 |
| 2 |
Disc |
Ductile / Nickel Plated |
| 3 |
Seat |
NBR |
| 4 |
Upper Shaft |
Stainless Steel 410 |
| 5 |
Lower Shaft |
Stainless Steel 410 |
| 6 |
Bushing |
PTFE |
| 7 |
Cotter Pin |
Carbon Steel |
| 8 |
Circlip |
Carbon Steel |
| 9 |
O-Ring |
EPDM |
| 10 |
Ring |
PTFE |
| 11 |
Handle |
DN 50-150 Aluminium DN200-300 CI |
| 12 |
Bolt |
Stainless Steel 304 |
