2" BSPP Fig 642 Safety Valve Pre-Set To 15 Bar
2" BSPP Fig 642 Safety Valve Pre-Set To 15.0 Bar

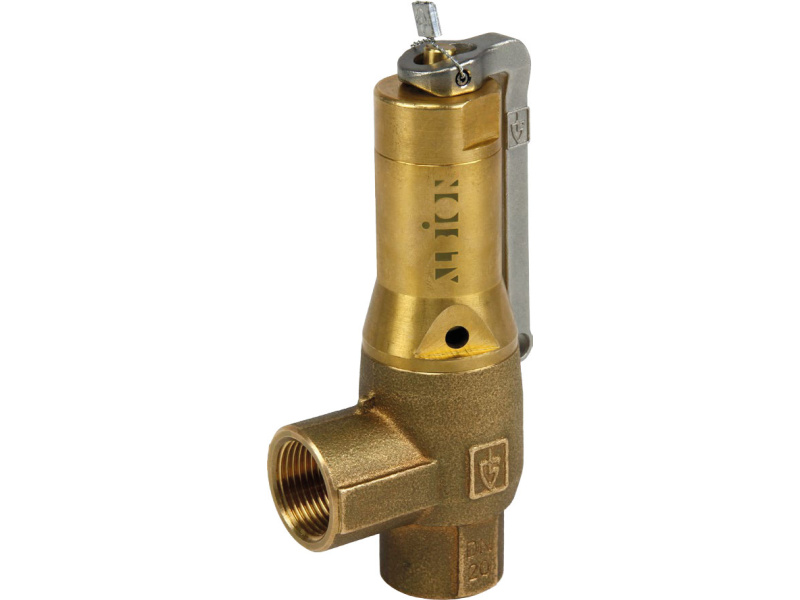

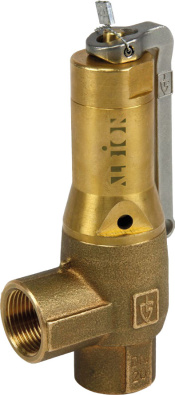

Albion 2" BSPP ART 642 Gunmetal Safety Valve is a screwed safety valve which is suitable for gases, liquids and steam. Available in a set pressure range from 0.5-16 Bar.
- Features
- Screwed BSP Parallel (ISO 228)
- Gunmetal body
- Suitable for Gas, Liquid & Steam
- Fitted with Diaphragm to Protect Spring Housing
- Set Range 0.5 to 16 Bar
- WRAS approved (½" - 1¼")
- ISO 4126-1, PED 2014/68/EU, TRD 421
- Classification - GL, DNV
- Typical Applications
- Pressure vessels
- Mechanical engineering
- Pump protection
- Pressure booster systems water/air-side
- Cooling/Chilling Systems
- Steam and Industrial boiler systems
Max. Pressure | 15 Bar |
---|---|
Working Temperature | EPDM Diaphragm -50°C to +195°C |
Discharge Capacities
DN | 50 | |||
---|---|---|---|---|
Bar | Air Nm³/h |
Steam kg/h |
Water m³h |
Heating kW |
15 | 6401 | 4817 | 81.5 | 2616 |
Materials
N. | Part Name | Materials |
---|---|---|
1 | Body | Gunmetal |
2 | Housing Cap | Brass / Gunmetal |
3 | Spring Housing | Brass / Gunmetal |
4 | Lifting Lever | Stainless Steel CF8M |
5 | Spring | Stainless Steel 302 |
6 | Seat-Seal | PTFE |
7 | Diaphragm | EPDM |
Dimensions
DN | 2" |
---|---|
L | 68 |
L max | 150 |
H | 229 |
h | 55 |
Hmax | 252 |
SW | 70 |
do | 39 |
kg | 5.8 |
