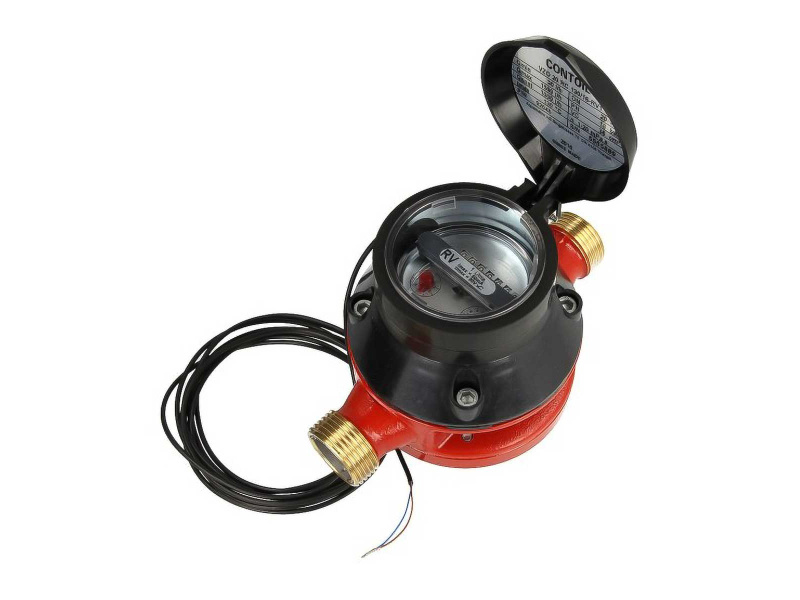

Oil Flow Meter Fig VZO 1/2" BSP Pulsed 130°C
| Type | VZO 15 | ||
|---|---|---|---|
| Nominal Diameter | DN | mm inch |
15 ½ |
| Installation length | mm | 165 | |
| Nominal Pressure with threaded ends | PN | Bar | 16 |
| Maximum Temperature | Tmax | °C | 130,180 |
| Maximum flow rate | Qmax3 | l/h | 600 |
| Nominal flow rate | Qcont3 | l/h | 400 |
| Minimal flow rate | Qmin | l/h | 104 |
| Approx. starting flow rate | l/h | 4 | |
| Max. permissible error | ±1% of actual value | ||
| Repeatability | ±0.2% | ||
| Safety filter mesh size | mm | 0.400 | |
| Dirt filter mesh size | mm | 0.250 | |
| Volume of the measuring chamber | approx. cm3 | 12 | |
| Housing finish | enamelled red RAL 3013 | ||
| Weight with threaded ends | approx kg | 2.2 | |
| Smallest readable amount | | | 0.01 | |
| Registration capacity | m3 | 1000 | |
| Registration time at Qcont until overrunning to zero | h | 250 | |
Oil Flow Meter Fig VZO ½" BSP
Pulsed
130°C
The Aquametro VZO (Male Thread Union Connections [In-Line]) screwed oil flow meters provide an accurate, reliable and economical way of obtaining all the information a user needs to control oil usage and energy costs. The oil flow meters handle a wide range of viscosity's for a variety of applications including checking and totalising fuel for burners, furnaces and diesel engines recording draw off from storage tanks and recording general usage.
- Features
- Volume display on roller counter, in litres
- Fuel oil meter with threaded or flanged ends
- For horizontal, vertical or inclined mounting
- Accuracy of ±1% of reading with a repeatability of ±2%
- Durable tamper resistant construction
- Optional pulse output facility
- All suitable for light and medium grade heating oil and diesel oil. ¾"-2" for heavy grade oil
- Maximum temperature 60°C to ¼" 130°C to 2" horizontal and vertical pipes.
Pressure & Temperature Pressure Range: Fig VZO up to 16 Bar
Temperature Range: Fig VZO up to 130°C
