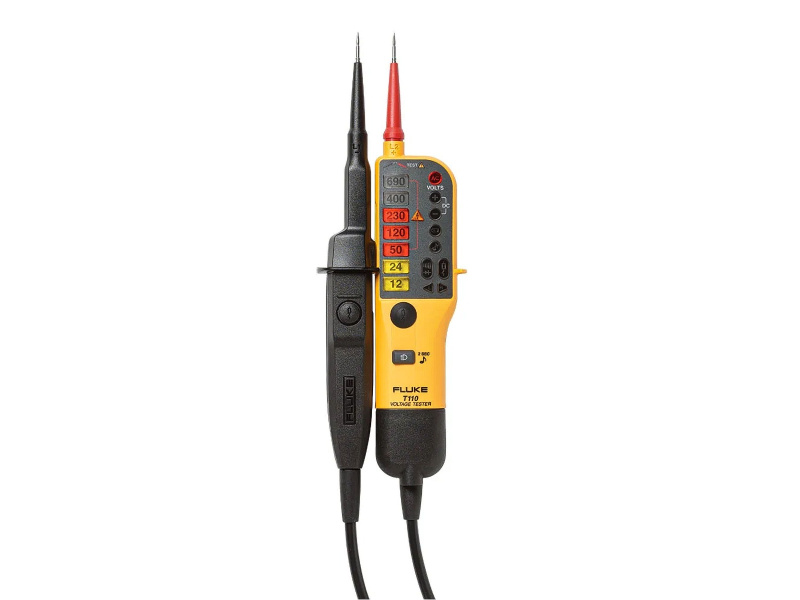

Fluke T110 Voltage/Continuity Tester
Fluke T110 Voltage/Continuity Tester with Switchable Load
Fluke’s two-pole voltage and continuity testers are built to work the way you work. They give you the best combination of safety, ease-of-use and fast answers available anywhere.
- Designed according to IEC EN 61243-3:2014 to verify the absence of voltage – even with discharged batteries.
- CAT IV 600 V, CAT III 690 V safety rating
The Fluke T110 Voltage and Continuity Tester with electric torch, backlit LED indicator, clear audible and vibrating voltage indicator let you work with confidence, while getting test results the way you want them.
Two-pole voltage and continuity testers measure voltage, but just as important is when a two-pole tester tells you that there is NOT voltage present before working on any circuit. For you to rely on your two-pole tester, it has to be the most rugged and reliable tester you can find. That’s what Fluke’s redesigned two-pole testers give you.
- Features
- Dual insulated cable tested to 3x the required bend angle provides increased reliability and durability.
- Switchable load: avoid display of ghost voltages allowing you to draw more current from the circuit under test and avoid trip residual-current devices (RCDs)
- Backlit graduated scale and backlit indicators
- Built in electric torch for use in dark areas.
- Audio on/off for testing in quiet areas.
- Improved probe docking for secure storage.
- Phase rotation indicator for 3-phase systems.
- Single-pole phase test offers fast identification of live conductors.
- Push-on probe tips, probe tip protector and storage accessory.
- Tip protector serves as an extra hand when opening UK electrical safety outlets.
- Low battery indicator.
Specifications
Features | T110 |
---|---|
Backlit LED indicator | • |
Backlit LCD digital display | N/A |
Continuity test—visual results | • |
Continuity test—audible results | • with on/off |
Vibratory indicator under load | • |
Display hold | N/A |
Voltage test | • |
Indication of polarity | • |
Resistance measurement | N/A |
Switchable load | • |
Single pole test for phase detection | • |
Rotary field indicator | • |
Probe tip protection | • |
Voltage detection with discharged batteries | • |
Electrical torch function | • |
Wear indicator test lead wire | • |
Specifications | T110 |
---|---|
Voltage AC/DC | 12V - 690V |
Continuity | 0 - 400 kΩ |
Frequency | 0 / 40 - 400 Hz |
Phase rotation | 100 V - 690 V |
Resistance measurement | - |
Response Time (LED indicator) | < 0.5 s |
200 kΩ input impedance | Current draw 3,5 mA @ 690 V Current draw 1,15 mA @ 230 V |
7k Ω input impedance (with load buttons pressed) | Current draw 30 mA @ 230 V |
Safety rating | CAT III 690V CAT IV 600V |
IP rating | IP64 |
Power requirement | 2-AAA batteries |
Net weight | 280 g (9.9 oz) |
Size (LxWxH) | 26 cm x 7 cm x 3.8 cm |
Warranty | 2 years |
Country of origin | Great Britain |
