Pressure Transmitter 0-1.6 Bar
Performance (EN 60770)
Accuracy (incl. non-linearity, hysteresis and repeatability) | ≤ ± 0.2% FS (typ.) | ||
---|---|---|---|
≤ ± 0.5% FS (max.) | |||
Non-linearity BFSL (conformity) | ≤ ± 0.2% FS | ||
Hysteresis and repeatability | ≤ ± 0.1% FS | ||
Thermal zero point shift | Measuring range: | 0 – 250 mbar | ≤ ± 0.4% FS / 10K |
0 – 400 mbar | ≤ ± 0.3% FS / 10K | ||
≥ 0 – 600 mbar | ≤ ± 0.2% FS / 10K | ||
Thermal sensitivity (span) shift | Measuring range: | 0 – 250 mbar | ≤ ± 0.4% FS / 10K |
0 – 400 mbar | ≤ ± 0.35% FS / 10K | ||
≥ 0 – 600 mbar | ≤ ± 0.2% FS / 10K | ||
Response time | < 4 ms | ||
Durability, P: 10 – 90% FS | > 10 × 106 cycles | ||
Zero point adjustment | Measuring range: | 0 – 0.25 to 0 – 10 bar | -5 – 20% FS |
0 – 16 to 0 – 25 bar | -5 – 10% FS | ||
Span adjustment | Measuring range: | 0 – 0.25 to 0 – 25 bar | -5 – 5% FS |
Electrical Specifications
Nom. output signal (short-circuit protected) | 4 – 20 mA |
Supply voltage [UB], polarity protected | 10 – 30 V DC |
Supply voltage dependency | ≤ ± 0.1% FS / 10 V |
Current limitation (linear output signal up to 1.5 × rated range) | 28 mA (typ.) |
Load [RL] (load connected to 0 V) | RL ≤ (UB - 10 V) / 0.02 A [Ω] |
Environmental Conditions
Sensor temperature range |
Normal |
-40 – 85 °C |
|
ATEX Zone 2 |
-10 – 85 °C |
||
Media temperature |
115 - (0.35 × ambient temperature) |
||
Ambient temperature range |
-10 – 85 °C |
||
Compensated temperature range |
0 – 80 °C |
||
Transport / Storage temperature range |
-25 – 85 °C |
||
EMC – Emission |
EN 61000-6-3 |
||
EMC – Immunity |
EN 61000-6-2 |
||
Insulation resistance |
> 100 MΩ at 100 V |
||
Mains frequency test |
Based on SEN 361503 |
||
Vibration stability |
Sinusoidal |
15.9 mm-pp, 5 Hz – 25 Hz |
IEC 60068-2-6 |
20 g, 25 Hz – 2 kHz |
|||
Random |
7.5 grms , 5 Hz – 1 kHz |
IEC 60068-2-64 |
|
Shock resistance |
Shock |
500 g / 1 ms |
IEC 60068-2-27 |
Free fall |
1 m |
IEC 60068-2-32 |
|
Enclosure (depending on electrical connection) |
IP65 |

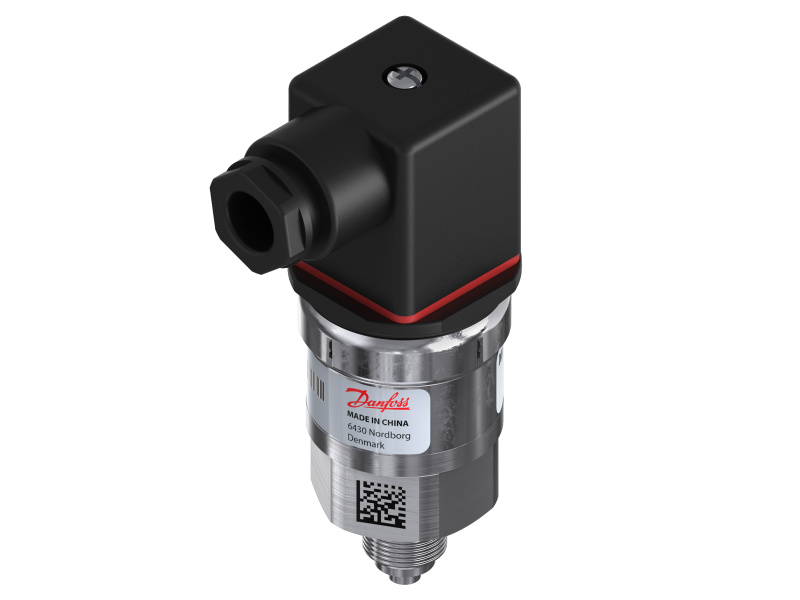

Danfoss MBS 4510 Pressure Transmitter
Pressure Range: 0-1.6 Bar
The high accuracy flush diaphragm pressure transmitter MBS 4510 is designed for use in non-uniform, high viscous or crystallizing media within industrial applications, and offers a reliable pressure measurement, even under harsh environmental conditions.
The flexible pressure transmitter programme covers a 4 – 20 mA output signal, absolute or gauge (relative) versions, measuring ranges from 0 – 0.25 to 0 – 25 bar zero and span adjustment. A rotatable plug connection and a G1A conic pressure connection with flush mounted diaphragm.
Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
- Features
- Designed for use in severe industrial environments
- Enslosure and wetted parts of acid-resistant stainless steel (AISI 316L)
- Pressure ranges in relative (gauge) or absolute up to 25 bar
- Output signal: 4 – 20 mA
- Temperature compensated and laser calibrated
- Accuracy 0.5% FS
- Zero and span adjustment
- USDA-H1 approved oil filling
- For use in Zone 2 explosive atmosphere
Pressure Range Bar. |
Max. Overload Pressure Bar. |
Burst Pressure Bar. |
---|---|---|
0 - 1.6 | 8 | 50 |
