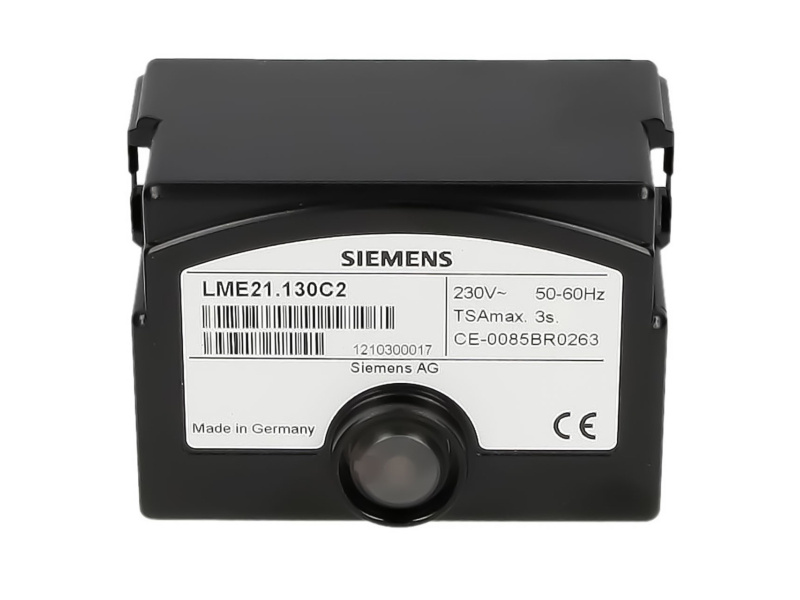

LME21.130C2 Control Box 240v
LME21.130C2 Control Box
240v
Burner controls for the supervision of 1- or 2-stage gas or gas/oil burners of small to medium capacity, intermittent operation with or without a fan.
LME… burner controls are used for the activation, and monitoring of 1- or 2-stage gas or gas/oil burners in intermittent operation. The flame is supervised by an ionization probe or flame detector QRA… with ancillary unit AGQ3…A27 for gas/oil forced draft burners or blue-burning flames with blue-flame Detectors QRC...
For housing dimensions, the LME... are identical with the LGB… and LMG… burner controls.
• For gas burners with or without a fan to EN 298: 2003
• For gas burners with fans conforming to EN 676
• For oil burners to EN 230: 2005
- Features
- Under voltage detection
- Air pressure supervision with a functional check of the air pressure switch during burner activation and operation
- Electrical remote reset facility
- Multicolour indication of fault status and operational status messages
- Limits the number of repetitions
- Accurate control sequence thanks to digital signal handling
- Controlled intermittent operation after 24 hours of continuous operation
LME21.130C2 Control Box
240v
Burner controls for the supervision of 1- or 2-stage gas or gas/oil burners of small to medium capacity, intermittent operation with or without a fan.
LME… burner controls are used for the activation, and monitoring of 1- or 2-stage gas or gas/oil burners in intermittent operation. The flame is supervised by an ionization probe or flame detector QRA… with ancillary unit AGQ3…A27 for gas/oil forced draft burners or blue-burning flames with blue-flame Detectors QRC...
For housing dimensions, the LME... are identical with the LGB… and LMG… burner controls.
• For gas burners with or without a fan to EN 298: 2003
• For gas burners with fans conforming to EN 676
• For oil burners to EN 230: 2005
- Features
- Under voltage detection
- Air pressure supervision with a functional check of the air pressure switch during burner activation and operation
- Electrical remote reset facility
- Multicolour indication of fault status and operational status messages
- Limits the number of repetitions
- Accurate control sequence thanks to digital signal handling
- Controlled intermittent operation after 24 hours of continuous operation
